Simple Linear Regression Modeling¶
We’ll learn the basics of this popular statistical model, what regression is, and how linear and logistic regressions differ. We’ll then learn how to fit simple linear regression models with numeric and categorical explanatory variables, and how to describe the relationship between the response and explanatory variables using model coefficients.
Regression lets you predict the values of a response variable from known values of explanatory variables. Which variable you use as the response variable depends on the question you are trying to answer, but in many datasets, there will be an obvious choice for variables that would be interesting to predict. Over the next few exercises, we’ll explore a Taiwan real estate dataset with four variables.
Variable Meaning
dist_to_mrt_station_m Distance to nearest MRT metro station, in meters.
n_convenience No. of convenience stores in walking distance.
house_age_years The age of the house, in years, in three groups.
price_twd_msq House price per unit area, in New Taiwan dollars per meter squared.The price_twd_msq variable will make a good response variable.
This dataset can be found at the below machine learning archive:
Real estate valuation data set. (2018). UCI Machine Learning Repository.
https://archive.ics.uci.edu/dataset/477/real+estate+valuation+data+set
Visualizing two numeric variables¶
Before we can run any statistical models, it’s usually a good idea to visualize our dataset. Here, we’ll look at the relationship between house price per area and the number of nearby convenience stores using the Taiwan real estate dataset.
One challenge in this dataset is that the number of convenience stores contains integer data, causing points to overlap. To solve this, we will make the points transparent.
taiwan_real_estate is available as a pandas DataFrame.
# import
import seaborn as sns
import matplotlib.pyplot as plt
import pandas as pd
from statsmodels.formula.api import ols # ordinary least squares
taiwan_real_estate = pd.read_excel('Real estate valuation data set.xlsx', index_col=0)
taiwan_real_estate.rename(columns={'X1 transaction date': 'x_date',
'X2 house age': 'house_age_years',
'X3 distance to the nearest MRT station': 'dist_to_mrt_station_m',
'X4 number of convenience stores': 'n_convenience',
'X5 latitude': 'latitude',
'X6 longitude': 'longitude',
'Y house price of unit area': 'price_twd_msq'}, inplace = True)
print(taiwan_real_estate.head())
x_date house_age_years dist_to_mrt_station_m n_convenience \
No
1 2012.916667 32.0 84.87882 10
2 2012.916667 19.5 306.59470 9
3 2013.583333 13.3 561.98450 5
4 2013.500000 13.3 561.98450 5
5 2012.833333 5.0 390.56840 5
latitude longitude price_twd_msq
No
1 24.98298 121.54024 37.9
2 24.98034 121.53951 42.2
3 24.98746 121.54391 47.3
4 24.98746 121.54391 54.8
5 24.97937 121.54245 43.1
# Increase size of plot in jupyter
# (you will need to run the cell twice for the size change to take effect, not sure why)
plt.rcParams["figure.figsize"] = (18,12)

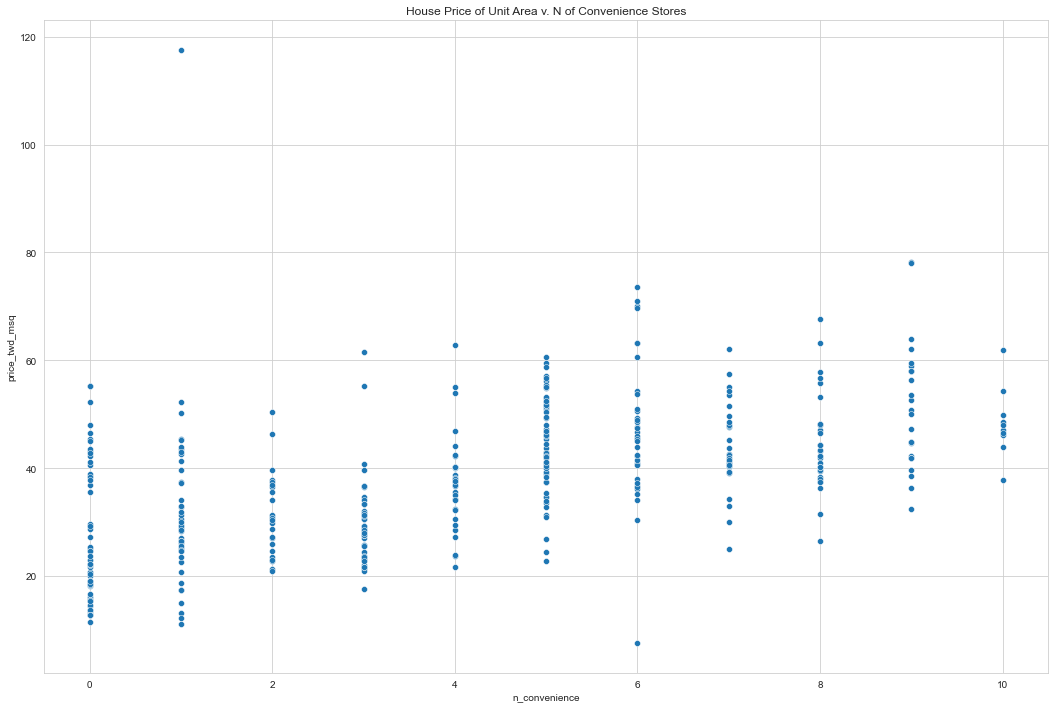

# house price per area and the number of nearby convenience stores
sns.scatterplot(data=taiwan_real_estate, y='price_twd_msq', x='n_convenience')
plt.title("House Price of Unit Area v. N of Convenience Stores")
plt.show()
# Set the style to display gridlines
sns.set_style('whitegrid')

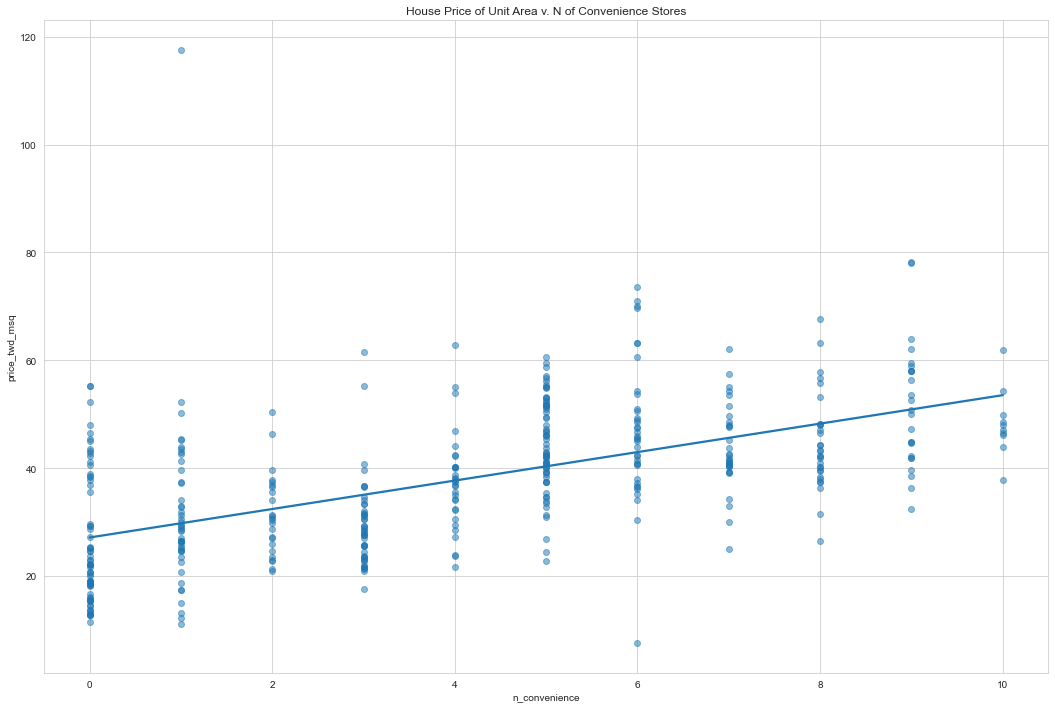

# Draw a trend line on the scatter plot of price_twd_msq vs. n_convenience
# Regplots are used to plot trendlines
sns.regplot(
x="n_convenience",
y="price_twd_msq",
data=taiwan_real_estate,
ci=None,
scatter_kws={'alpha': 0.5}) # makes the data points 50% transparent
# Show the plot
plt.title("House Price of Unit Area v. N of Convenience Stores")
plt.show()
Estimating the slope¶
To estimate the slope, we need two points, (35,3), and (40,5). We calculate the change in y values between the points. Now we do the same for the x axis. To estimate the slope we divide the y difference by the x difference. Let’s run a linear regression to check our guess.
(40 - 35) / (5 - 3) = 2.5Running a model¶
To run a linear regression model, you import the ols function from statsmodels.formula.api. OLS stands for ordinary least squares, which is a type of regression, and is commonly used. The function ols takes two arguments. The first argument is a formula: the response variable is written to the left of the tilde ~, and the explanatory variable is written to the right. The data argument takes the DataFrame containing the variables. To actually fit the model, you add the .fit() method to your freshly created model object. When you print the resulting model, it’s helpful to use the params attribute, which contains the model’s parameters. This will result in two coefficients. These coefficients are the Intercept and slope of the straight line. It seems our guesses were pretty close. The intercept is very close to our estimate of 2.5. The slope, indicated here as n_convenience, is 2.64, slightly higher than what we estimated.
Interpreting the model coefficients¶
That means that we expect the total house price per unit area (in New Taiwan dollars per meter squared) to be 27 plus 2.6 times the number of convenience stores. So for every additional claim, we expect the total price to increase by 2.6.
Linear regression with ols()¶
While sns.regplot() can display a linear regression trend line, it doesn’t give you access to the intercept and slope as variables, or allow you to work with the model results as variables. That means that sometimes you’ll need to run a linear regression ourselves.
Time to run our first model!
# Import the ols function
from statsmodels.formula.api import ols
# Create the model object
mdl_price_vs_conv = ols('price_twd_msq ~ n_convenience', data=taiwan_real_estate) #TWD is an abbreviation for Taiwan dollars.
# Fit the model
mdl_price_vs_conv = mdl_price_vs_conv.fit()
# Print the parameters of the fitted model
print(mdl_price_vs_conv.params)
Intercept 27.181105 n_convenience 2.637653 dtype: float64
Visualizing numeric vs. categorical¶
If the explanatory variable is categorical, the scatter plot that we used before to visualize the data doesn’t make sense. Instead, a good option is to draw a histogram for each category. The Taiwan real estate dataset has a categorical variable in the form of the age of each house. The ages have been split into 3 groups: 0 to 15 years, 15 to 30 years, and 30 to 45 years. taiwan_real_estate is available
# Use pd.cut to create a categorical variable from a numeric column.
# Define your boundaries (including np.inf) and category names, then apply pd.cut to the desired numeric column.
bins = [0, 15, 30, 45] # np.inf is not needed: no overflow bin needed
names = ['0 to 15', '15 to 30', '30 to 45']
taiwan_real_estate['house_age_years_group'] = pd.cut(taiwan_real_estate['house_age_years'], bins, labels=names)
print(taiwan_real_estate.dtypes)
x_date float64 house_age_years float64 dist_to_mrt_station_m float64 n_convenience int64 latitude float64 longitude float64 price_twd_msq float64 house_age_years_group category dtype: object
print(taiwan_real_estate.head())
x_date house_age_years dist_to_mrt_station_m n_convenience \
No
1 2012.916667 32.0 84.87882 10
2 2012.916667 19.5 306.59470 9
3 2013.583333 13.3 561.98450 5
4 2013.500000 13.3 561.98450 5
5 2012.833333 5.0 390.56840 5
latitude longitude price_twd_msq house_age_years_group
No
1 24.98298 121.54024 37.9 30 to 45
2 24.98034 121.53951 42.2 15 to 30
3 24.98746 121.54391 47.3 0 to 15
4 24.98746 121.54391 54.8 0 to 15
5 24.97937 121.54245 43.1 0 to 15

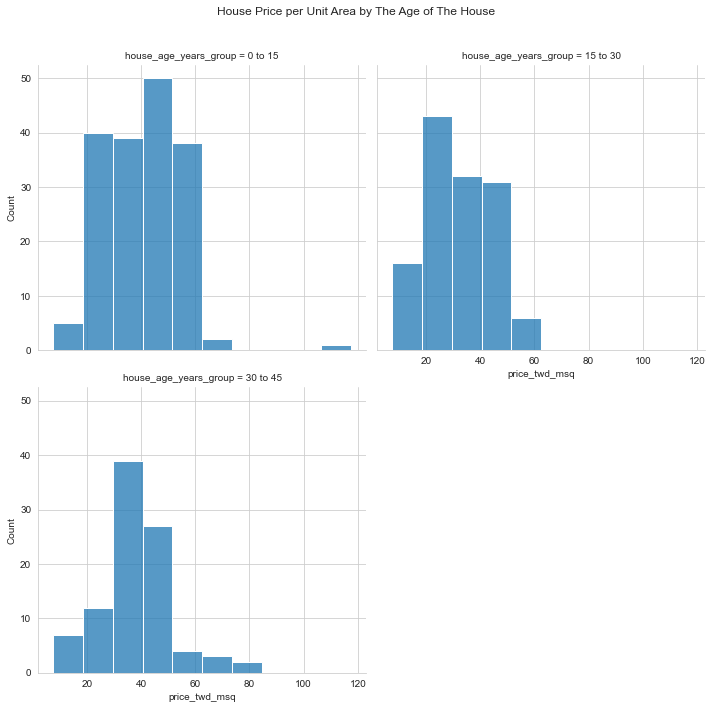

# Histograms of price_twd_msq with 10 bins, split by the age of each house
disp = sns.displot(data=taiwan_real_estate,
x='price_twd_msq',
bins=10,
col='house_age_years_group',
col_wrap=2)
#move overall title up
disp.fig.subplots_adjust(top=.9)
# Show the plot
disp.fig.suptitle("House Price per Unit Area by The Age of The House")
plt.show()
Calculating means by category¶
A good way to explore categorical variables further is to calculate summary statistics for each category. For example, we can calculate the mean and median of our response variable, grouped by a categorical variable. As such, we can compare each category in more detail.
Here, we’ll look at grouped means for the house prices in the Taiwan real estate dataset. This will help you understand the output of a linear regression with a categorical variable.
# Calculate the mean of price_twd_msq, grouped by house age
mean_price_by_age = taiwan_real_estate.groupby(by=['house_age_years_group'])['price_twd_msq'].mean()
# Print the result
print(mean_price_by_age)
house_age_years_group 0 to 15 40.404000 15 to 30 32.643750 30 to 45 37.812766 Name: price_twd_msq, dtype: float64
Linear regression with a categorical explanatory variable¶
The means of each category will also be the coefficients of a linear regression model with one categorical variable. We’ll prove that in this exercise.
To run a linear regression model with categorical explanatory variables, we can use the same code as with numeric explanatory variables. The coefficients returned by the model are different, however. Here we’ll run a linear regression on the Taiwan real estate dataset.
# Create the model, fit it
mdl_price_vs_age = ols('price_twd_msq ~ house_age_years_group', data=taiwan_real_estate).fit()
# Print the parameters of the fitted model
print(mdl_price_vs_age.params)
Intercept 40.404000 house_age_years_group[T.15 to 30] -7.760250 house_age_years_group[T.30 to 45] -2.591234 dtype: float64
# Update the model formula to remove the intercept
mdl_price_vs_age0 = ols("price_twd_msq ~ house_age_years_group + 0", data=taiwan_real_estate).fit()
# Print the parameters of the fitted model
print(mdl_price_vs_age0.params)
house_age_years_group[0 to 15] 40.404000 house_age_years_group[15 to 30] 32.643750 house_age_years_group[30 to 45] 37.812766 dtype: float64
Predicting house prices¶
Perhaps the most useful feature of statistical models like linear regression is that you can make predictions. That is, you specify values for each of the explanatory variables, feed them to the model, and get a prediction for the corresponding response variable. The code flow is as follows.
explanatory_data = pd.DataFrame({"explanatory_var": list_of_values})
predictions = model.predict(explanatory_data)
prediction_data = explanatory_data.assign(response_var=predictions)Here, we’ll make predictions for the house prices in the Taiwan real estate dataset.
# Import numpy with alias np
import numpy as np
# Create the explanatory_data
explanatory_data = pd.DataFrame({'n_convenience': np.arange(0,11)})
# Print it
print(explanatory_data)
n_convenience 0 0 1 1 2 2 3 3 4 4 5 5 6 6 7 7 8 8 9 9 10 10
# Import numpy with alias np
import numpy as np
# Create explanatory_data
explanatory_data = pd.DataFrame({'n_convenience': np.arange(0, 11)})
# Use mdl_price_vs_conv to predict with explanatory_data, call it price_twd_msq
price_twd_msq = mdl_price_vs_conv.predict(explanatory_data)
# Print it
print(price_twd_msq)
0 27.181105 1 29.818758 2 32.456412 3 35.094065 4 37.731719 5 40.369372 6 43.007026 7 45.644679 8 48.282332 9 50.919986 10 53.557639 dtype: float64
# Import numpy with alias np
import numpy as np
# Create explanatory_data
explanatory_data = pd.DataFrame({'n_convenience': np.arange(0, 11)})
# Use mdl_price_vs_conv to predict with explanatory_data, call it price_twd_msq
price_twd_msq = mdl_price_vs_conv.predict(explanatory_data)
# Create prediction_data
prediction_data = explanatory_data.assign(
price_twd_msq = price_twd_msq)
# Print the result
print(prediction_data)
n_convenience price_twd_msq 0 0 27.181105 1 1 29.818758 2 2 32.456412 3 3 35.094065 4 4 37.731719 5 5 40.369372 6 6 43.007026 7 7 45.644679 8 8 48.282332 9 9 50.919986 10 10 53.557639

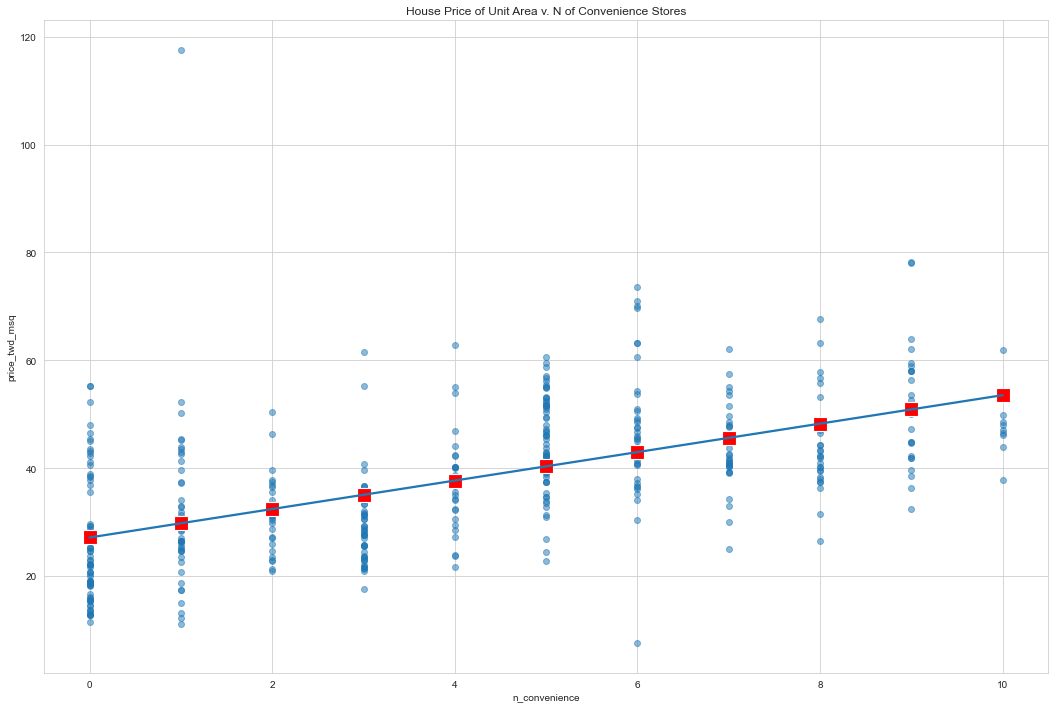

# Create a new figure, fig
fig = plt.figure()
sns.regplot(x="n_convenience",
y="price_twd_msq",
data=taiwan_real_estate,
ci=None,
scatter_kws=({'alpha':0.5}))
# Add a scatter plot layer to the regplot
sns.scatterplot(data=prediction_data
,x="n_convenience"
,y="price_twd_msq"
,marker='s'
,color='red'
,s=200
)
# Show the layered plot
plt.title("House Price of Unit Area v. N of Convenience Stores")
plt.show()

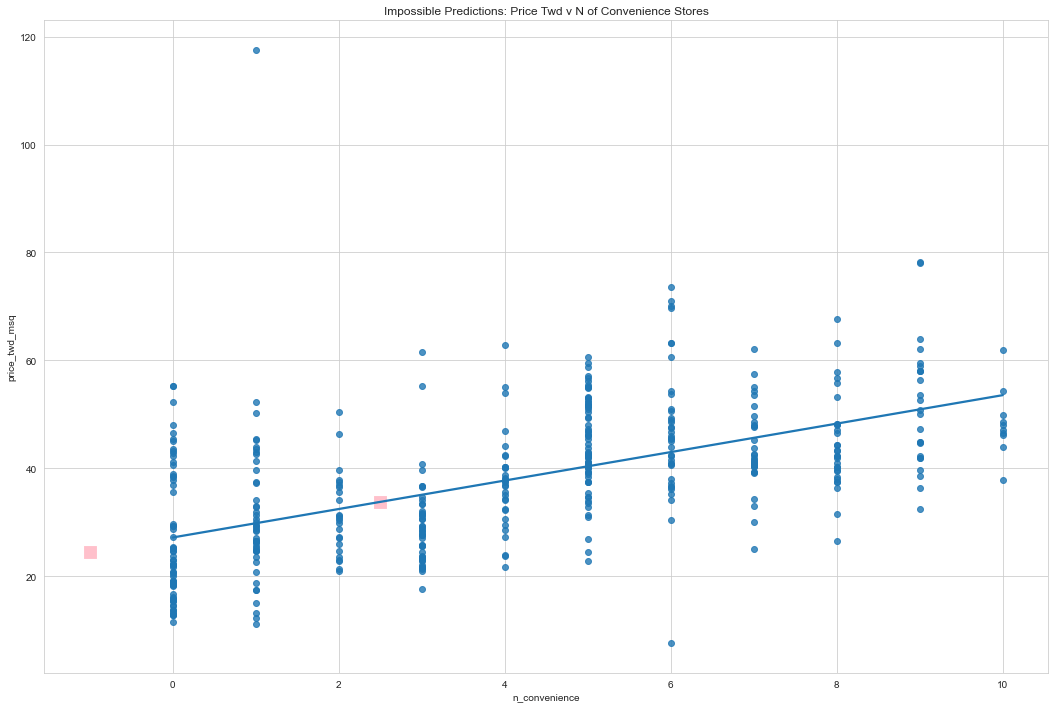

The limits of prediction¶
In the last exercise, we made predictions on some sensible, could-happen-in-real-life, situations. That is, the cases when the number of nearby convenience stores were between zero and ten. To test the limits of the model’s ability to predict, try some impossible situations.
Use the console to try predicting house prices from mdl_price_vs_conv when there are -1 convenience stores. Do the same for 2.5 convenience stores. What happens in each case? Will see that the model will successfully give us predictions about cases that are impossible in real life.
# Define a DataFrame impossible
impossible = pd.DataFrame({'n_convenience': (-1, 2.5)})
prediction_data = mdl_price_vs_conv.predict(impossible)
explan_predict_data = impossible.assign(price_twd_msq = prediction_data)
print(explan_predict_data)
sns.regplot( y = 'price_twd_msq'
,x = 'n_convenience'
,data = taiwan_real_estate
,ci=None)
sns.scatterplot (y = 'price_twd_msq'
,x = 'n_convenience'
,data = explan_predict_data
,s=200
,color='pink'
,marker='s')
plt.title('Impossible Predictions: Price Twd v N of Convenience Stores')
plt.show()
n_convenience price_twd_msq 0 -1.0 24.543451 1 2.5 33.775238
Extracting model elements¶
The model object created by ols() contains many elements. In order to perform further analysis on the model results, you need to extract its useful bits. The model coefficients, the fitted values, and the residuals are perhaps the most important pieces of the linear model object.
# create the model object of price as dependent and covenience stores as the independent variable
mdl_price_vs_conv = ols('price_twd_msq ~ n_convenience', data=taiwan_real_estate).fit()
print(mdl_price_vs_conv.params)
Intercept 27.181105 n_convenience 2.637653 dtype: float64
print(mdl_price_vs_conv.fittedvalues)
No
1 53.557639
2 50.919986
3 40.369372
4 40.369372
5 40.369372
...
410 27.181105
411 50.919986
412 45.644679
413 40.369372
414 50.919986
Length: 414, dtype: float64
# https://www.statsmodels.org/stable/generated/statsmodels.regression.linear_model.RegressionResults.resid.html
print(mdl_price_vs_conv.resid)
No
1 -15.657639
2 -8.719986
3 6.930628
4 14.430628
5 2.730628
...
410 -11.781105
411 -0.919986
412 -5.044679
413 12.130628
414 12.980014
Length: 414, dtype: float64
print(mdl_price_vs_conv.summary())
OLS Regression Results
==============================================================================
Dep. Variable: price_twd_msq R-squared: 0.326
Model: OLS Adj. R-squared: 0.324
Method: Least Squares F-statistic: 199.3
Date: Tue, 19 Dec 2023 Prob (F-statistic): 3.41e-37
Time: 14:03:49 Log-Likelihood: -1586.0
No. Observations: 414 AIC: 3176.
Df Residuals: 412 BIC: 3184.
Df Model: 1
Covariance Type: nonrobust
=================================================================================
coef std err t P>|t| [0.025 0.975]
---------------------------------------------------------------------------------
Intercept 27.1811 0.942 28.857 0.000 25.330 29.033
n_convenience 2.6377 0.187 14.118 0.000 2.270 3.005
==============================================================================
Omnibus: 171.927 Durbin-Watson: 1.993
Prob(Omnibus): 0.000 Jarque-Bera (JB): 1417.242
Skew: 1.553 Prob(JB): 1.78e-308
Kurtosis: 11.516 Cond. No. 8.87
==============================================================================
Notes:
[1] Standard Errors assume that the covariance matrix of the errors is correctly specified.
Manually predicting house prices¶
You can manually calculate the predictions from the model coefficients. When making predictions in real life, it is better to use .predict(), but doing this manually is helpful to reassure yourself that predictions aren’t magic – they are simply arithmetic.
In fact, for a simple linear regression, the predicted value is just the intercept plus the slope times the explanatory variable.
response = intercept + slope * explanatory
coeffs = mdl_price_vs_conv.params
intercept = coeffs[0]
print(intercept)
27.18110478147242
slope = coeffs[1]
print(slope)
2.6376534634043725
explanatory_data = taiwan_real_estate['n_convenience']
df = pd.DataFrame()
response_prediction = intercept + (slope * explanatory_data)
df['response_prediction'] = response_prediction
df['fittedvalues'] = mdl_price_vs_conv.fittedvalues
df['predict_explanatory_data'] = mdl_price_vs_conv.predict(explanatory_data)
print(df)
response_prediction fittedvalues predict_explanatory_data No 1 53.557639 53.557639 53.557639 2 50.919986 50.919986 50.919986 3 40.369372 40.369372 40.369372 4 40.369372 40.369372 40.369372 5 40.369372 40.369372 40.369372 .. ... ... ... 410 27.181105 27.181105 27.181105 411 50.919986 50.919986 50.919986 412 45.644679 45.644679 45.644679 413 40.369372 40.369372 40.369372 414 50.919986 50.919986 50.919986 [414 rows x 3 columns]
df2 = pd.DataFrame()
df2['n_convenience'] = explanatory_data
df2['fitted_values'] = mdl_price_vs_conv.fittedvalues
df2['residuals'] = mdl_price_vs_conv.resid
print(df2.head())
n_convenience fitted_values residuals No 1 10 53.557639 -15.657639 2 9 50.919986 -8.719986 3 5 40.369372 6.930628 4 5 40.369372 14.430628 5 5 40.369372 2.730628
# Graph Residuals
# reference: https://stackoverflow.com/questions/51220918/python-plot-residuals-on-a-fitted-model
y = df2['fitted_values']
x = df2['n_convenience']
dy = df2['residuals']
fig, ax = plt.subplots()
ax.plot(x,y)
ax.scatter(x,y+dy)
ax.vlines(x,y,y+dy)
plt.ylabel('Price TWD')
plt.xlabel('N of Convenience')
plt.title('Plot of Residuals for OLS of Price TWD v N of Convenience')
plt.show()
Transforming the explanatory variable¶
If there is no straight-line relationship between the response variable and the explanatory variable, it is sometimes possible to create one by transforming one or both of the variables. Here, you’ll look at transforming the explanatory variable.
You’ll take another look at the Taiwan real estate dataset, this time using the distance to the nearest MRT (metro) station as the explanatory variable. You’ll use code to make every commuter’s dream come true: shortening the distance to the metro station by taking the square root. Take that, geography!

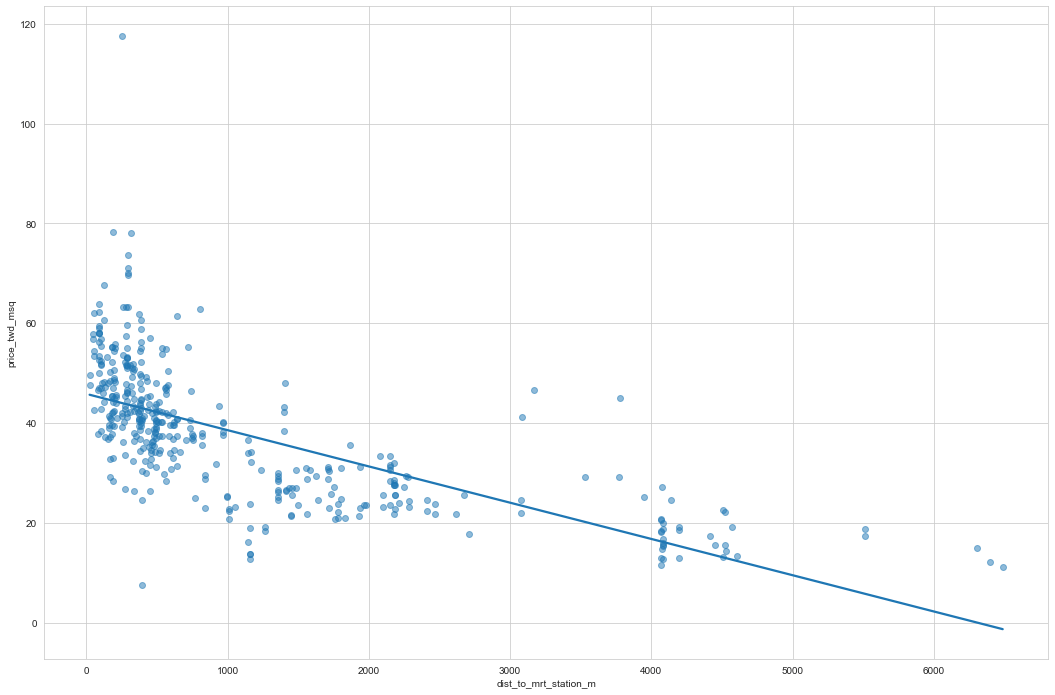

# Plot using the transformed variable
sns.regplot(y = 'price_twd_msq'
,x= 'dist_to_mrt_station_m'
,data = taiwan_real_estate
,ci = None
,scatter_kws = ({'alpha':0.5}))
plt.show()
# Create sqrt_dist_to_mrt_m
taiwan_real_estate["sqrt_dist_to_mrt_m"] = np.sqrt(taiwan_real_estate["dist_to_mrt_station_m"])
plt.figure()
# Plot using the transformed variable
sns.regplot(y = 'price_twd_msq'
,x= 'sqrt_dist_to_mrt_m'
,data = taiwan_real_estate
,ci = None
,scatter_kws = ({'alpha':0.5}))
plt.show()
mdl_price_sqrt_dist = ols('price_twd_msq ~ sqrt_dist_to_mrt_m', data = taiwan_real_estate).fit()
print(mdl_price_sqrt_dist.params)
Intercept 55.225885 sqrt_dist_to_mrt_m -0.604296 dtype: float64
explanatory_data = pd.DataFrame({'sqrt_dist_to_mrt_m' : np.arange(0,81,10),
'dist_to_mrt_station_m' : np.arange(0,81,10) **2})
prediction_data = explanatory_data.assign(price_twd_msq = mdl_price_sqrt_dist.predict(explanatory_data))
fig = plt.figure()
sns.regplot(y = 'price_twd_msq'
,x= 'sqrt_dist_to_mrt_m'
,data = taiwan_real_estate
,ci = None
,scatter_kws = ({'alpha':0.5}))
sns.scatterplot(y = 'price_twd_msq'
,x= 'sqrt_dist_to_mrt_m'
,data = prediction_data
,marker='s'
,color='coral' # https://matplotlib.org/stable/gallery/color/named_colors.html
,s=200)
plt.show()

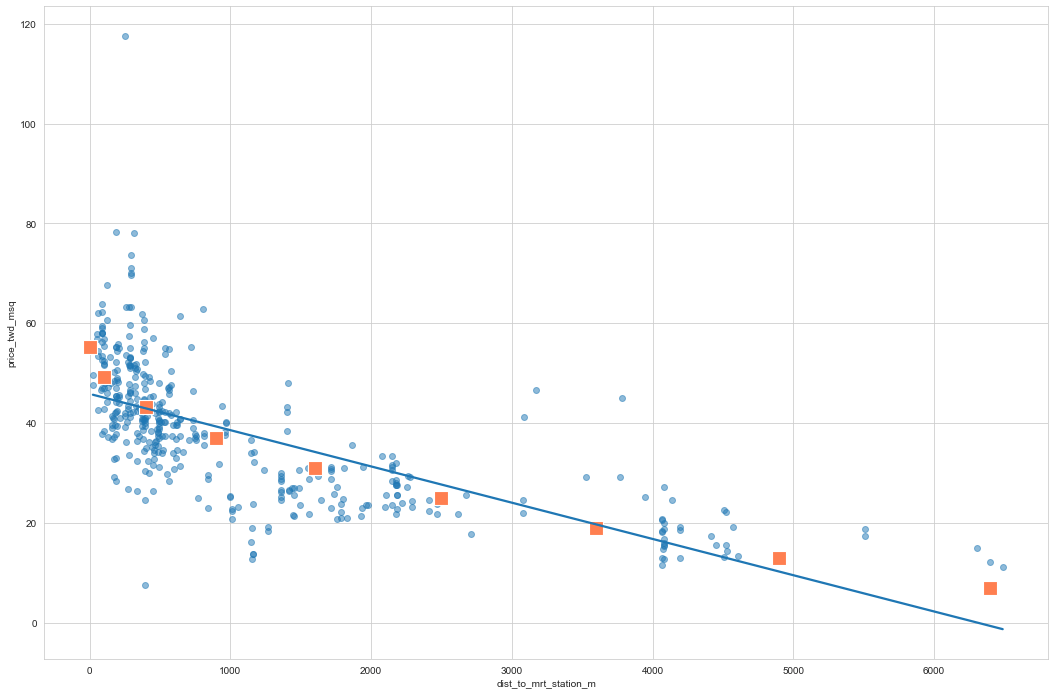

fig = plt.figure()
sns.regplot(y = 'price_twd_msq'
,x= 'dist_to_mrt_station_m'
,data = taiwan_real_estate
,ci = None
,scatter_kws = ({'alpha':0.5}))
sns.scatterplot(y = 'price_twd_msq'
,x= 'dist_to_mrt_station_m'
,data = prediction_data
,marker='s'
,color='coral' # https://matplotlib.org/stable/gallery/color/named_colors.html
,s=200)
plt.show()
Drawing diagnostic plots¶
It’s time for us to draw these diagnostic plots ourselves and the model of house prices versus number of convenience stores.
Let’s create the residuals versus fitted values plot and add a lowess argument to visualize the trend of the residuals.
# Plot the residuals vs. fitted values
sns.residplot(x='n_convenience', y='price_twd_msq', data=taiwan_real_estate, lowess=True)
plt.xlabel("Fitted values")
plt.ylabel("Residuals")
# Show the plot
plt.show()
This first diagnostic plot is of residuals versus fitted values. The blue line is a LOWESS trend line, which is a smooth curve following the data. These aren’t good for making predictions but are useful for visualizing trends. If residuals met the assumption that they are normally distributed with mean zero, then the trend line should closely follow the y equals zero line on the plot.
# Import qqplot
from statsmodels.api import qqplot
# Create the Q-Q plot of the residuals
qqplot(data=mdl_price_vs_conv.resid, fit=True, line="45")
# Show the plot
plt.show()

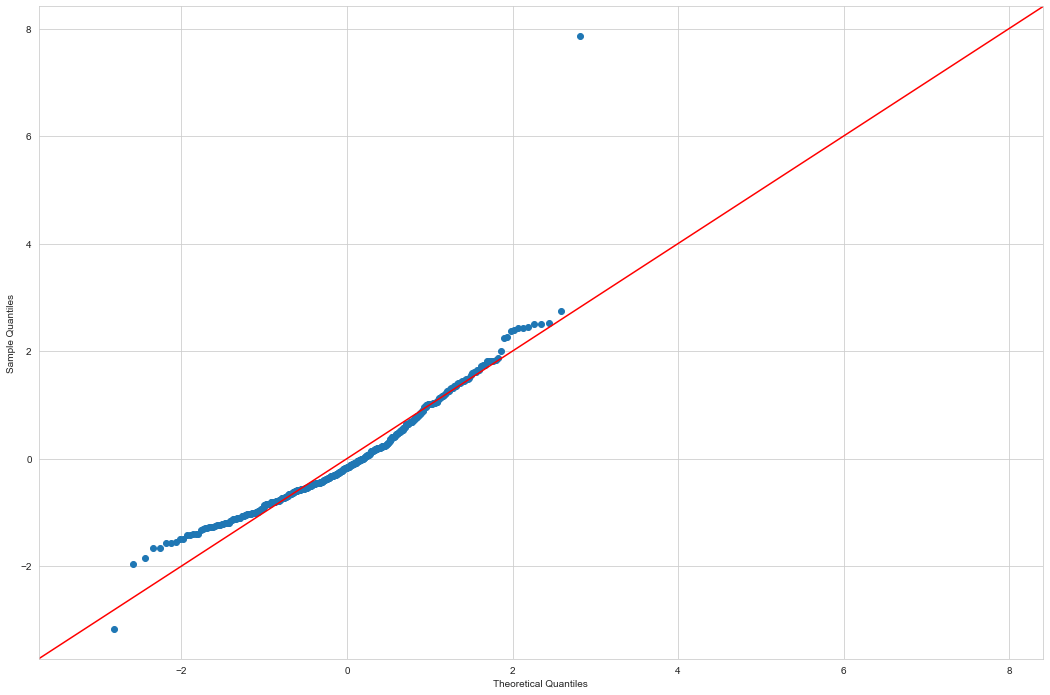

This second diagnostic plot is called a Q-Q plot. It shows whether or not the residuals follow a normal distribution. On the x-axis, the points are quantiles from the normal distribution. On the y-axis, you get the sample quantiles, which are the quantiles derived from your dataset. It sounds technical, but interpreting this plot is straightforward. If the points track along the straight line, they are normally distributed. If not, they aren’t.
# We first need to extract the normalized residuals from the model,
# which you can get by using the get_influence method, then accessing the resid_studentized_internal attribute.
model_norm_residuals = mdl_price_vs_conv.get_influence().resid_studentized_internal
# We then take the absolute values and take the square root of these normalized residuals to standardize them.
model_norm_residuals_abs_sqrt = np.sqrt(np.abs(model_norm_residuals))
# Create the scale-location plot
sns.regplot(x=mdl_price_vs_conv.fittedvalues, y=model_norm_residuals_abs_sqrt, ci=None, lowess=True)
plt.xlabel("Fitted values")
plt.ylabel("Sqrt of abs val of stdized residuals")
# Show the plot
plt.show()
This third plot shows the square root of the standardized residuals versus the fitted values. It’s often called a scale-location plot, because that’s easier to say. Where the first plot showed whether or not the residuals go positive or negative as the fitted values change, this plot shows whether the size of the residuals gets bigger or smaller.
taiwan_real_estate_sorted = taiwan_real_estate.sort_values(by=['sqrt_dist_to_mrt_m'], ascending=False)
taiwan_real_estate_leverage = taiwan_real_estate_sorted.head()
print(taiwan_real_estate_leverage)
x_date house_age_years dist_to_mrt_station_m n_convenience \
No
348 2013.583333 17.4 6488.021 1
117 2013.000000 30.9 6396.283 1
250 2012.833333 18.0 6306.153 1
256 2013.416667 31.5 5512.038 1
9 2013.500000 31.7 5512.038 1
latitude longitude price_twd_msq house_age_years_group \
No
348 24.95719 121.47353 11.2 15 to 30
117 24.94375 121.47883 12.2 30 to 45
250 24.95743 121.47516 15.0 15 to 30
256 24.95095 121.48458 17.4 30 to 45
9 24.95095 121.48458 18.8 30 to 45
sqrt_dist_to_mrt_m
No
348 80.548253
117 79.976765
250 79.411290
256 74.243101
9 74.243101
# Create sqrt_dist_to_mrt_m
taiwan_real_estate["sqrt_dist_to_mrt_m"] = np.sqrt(taiwan_real_estate["dist_to_mrt_station_m"])
plt.figure()
# Plot using the transformed variable
sns.regplot(data=taiwan_real_estate,
y='price_twd_msq',
x='sqrt_dist_to_mrt_m',
ci=None,
scatter_kws=({'alpha':0.5}))
# Plot using the transformed variable
sns.scatterplot(data=taiwan_real_estate_leverage,
y='price_twd_msq',
x='sqrt_dist_to_mrt_m',
color='red',
s=200)
plt.title('House price per unit area in New Taiwan dollars per meter squared. vs. Square Root of Distance to nearest MRT metro station, in meters')
plt.show()
Leverage¶
Leverage measures how unusual or extreme the explanatory variables are for each observation. Very roughly, high leverage means that the explanatory variable has values that are different from other points in the dataset. In the case of simple linear regression, where there is only one explanatory value, this typically means values with a very high or very low explanatory value.
Observations with a large distance to the nearest MRT station have the highest leverage, because most of the observations have a short distance, so long distances are more extreme.
# Create summary_info
summary_info = mdl_price_sqrt_dist.get_influence().summary_frame()
# Add the hat_diag column to taiwan_real_estate, name it leverage
taiwan_real_estate["leverage"] = summary_info['hat_diag']
# Sort taiwan_real_estate by leverage in descending order and print the head
print(taiwan_real_estate.sort_values(by=['leverage'], ascending=False).head())
x_date house_age_years dist_to_mrt_station_m n_convenience \
No
348 2013.583333 17.4 6488.021 1
117 2013.000000 30.9 6396.283 1
250 2012.833333 18.0 6306.153 1
256 2013.416667 31.5 5512.038 1
9 2013.500000 31.7 5512.038 1
latitude longitude price_twd_msq house_age_years_group \
No
348 24.95719 121.47353 11.2 15 to 30
117 24.94375 121.47883 12.2 30 to 45
250 24.95743 121.47516 15.0 15 to 30
256 24.95095 121.48458 17.4 30 to 45
9 24.95095 121.48458 18.8 30 to 45
sqrt_dist_to_mrt_m leverage
No
348 80.548253 0.026665
117 79.976765 0.026135
250 79.411290 0.025617
256 74.243101 0.021142
9 74.243101 0.021142
Influence¶
Influence measures how much a model would change if each observation was left out of the model calculations, one at a time. That is, it measures how different the prediction line would look if we ran a linear regression on all data points except that point, compared to running a linear regression on the whole dataset.
The standard metric for influence is Cook’s distance, which calculates influence based on the residual size and the leverage of the point. We can see the same model as last time: house price versus the square root of distance from the nearest MRT station in the Taiwan real estate dataset.
# Create summary_info
summary_info = mdl_price_sqrt_dist.get_influence().summary_frame()
# Add the hat_diag column to taiwan_real_estate, name it leverage
taiwan_real_estate["leverage"] = summary_info["hat_diag"]
# Add the cooks_d column to taiwan_real_estate, name it cooks_dist
taiwan_real_estate["cooks_dist"] = summary_info['cooks_d']
# Sort taiwan_real_estate by cooks_dist in descending order and print the head.
print(taiwan_real_estate.sort_values(by=['cooks_dist'], ascending=False).head())
x_date house_age_years dist_to_mrt_station_m n_convenience \
No
271 2013.333333 10.8 252.5822 1
149 2013.500000 16.4 3780.5900 0
229 2013.416667 11.9 3171.3290 0
221 2013.333333 37.2 186.5101 9
114 2013.333333 14.8 393.2606 6
latitude longitude price_twd_msq house_age_years_group \
No
271 24.97460 121.53046 117.5 0 to 15
149 24.93293 121.51203 45.1 15 to 30
229 25.00115 121.51776 46.6 0 to 15
221 24.97703 121.54265 78.3 30 to 45
114 24.96172 121.53812 7.6 0 to 15
sqrt_dist_to_mrt_m leverage cooks_dist
No
271 15.892835 0.003849 0.115549
149 61.486503 0.012147 0.052440
229 56.314554 0.009332 0.035384
221 13.656870 0.004401 0.025123
114 19.830799 0.003095 0.022813
Leverage and influence are important concepts for determining whether your model is overly affected by some unusual data points.
My Data Was A Miner
